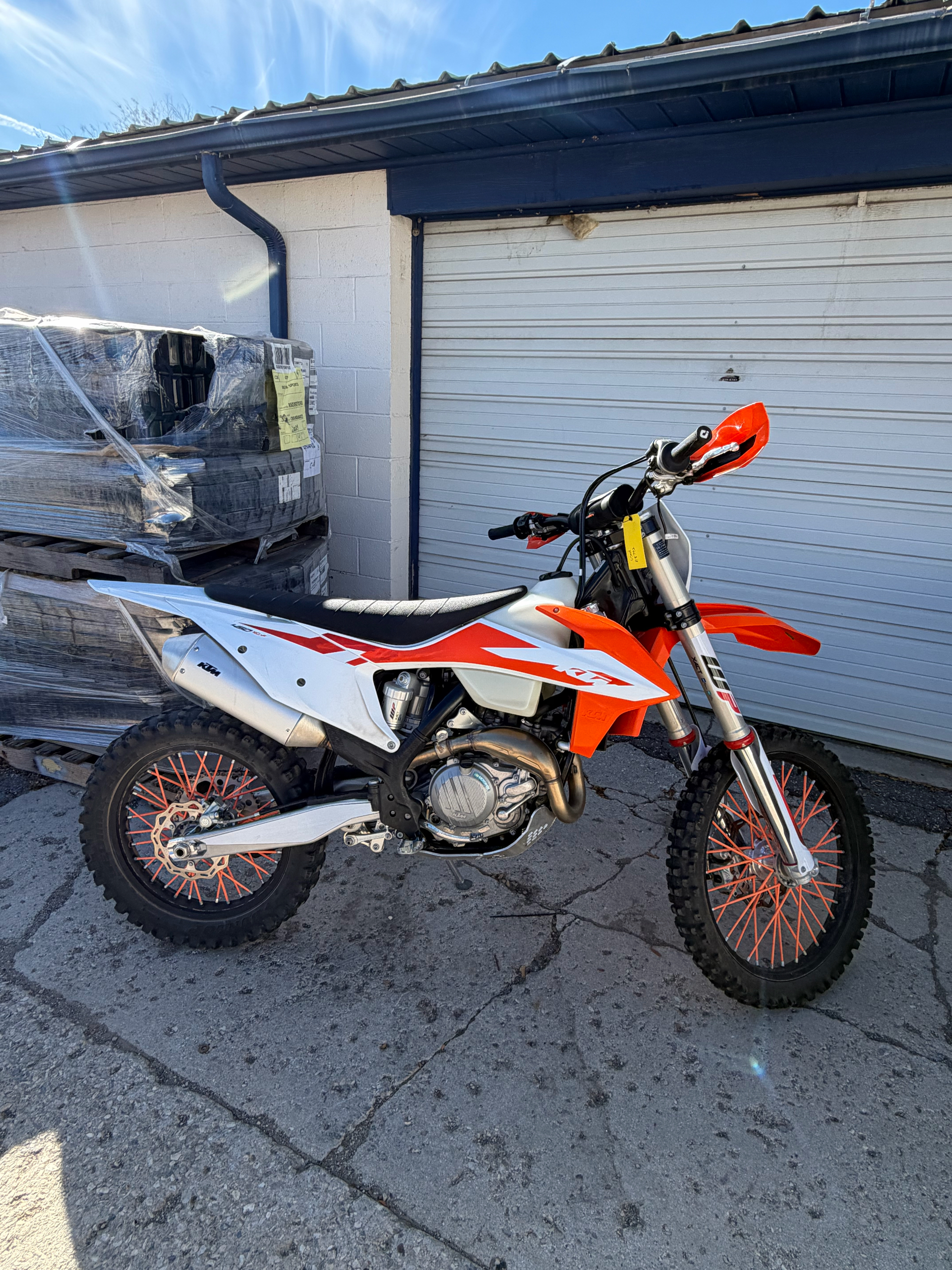

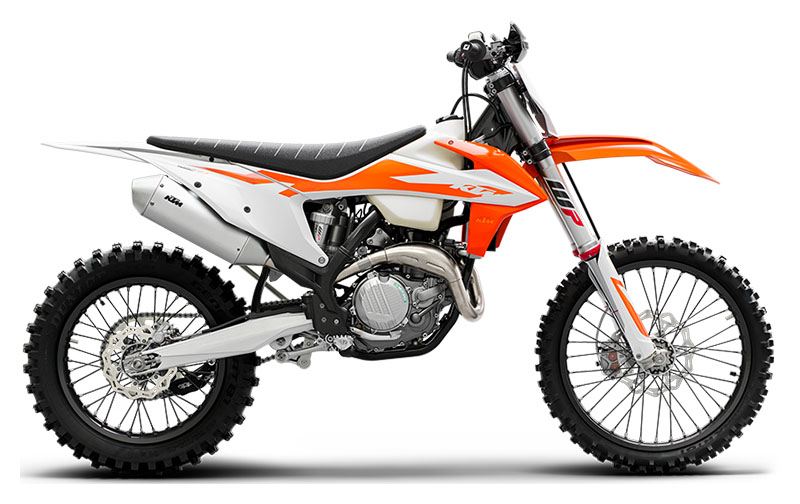

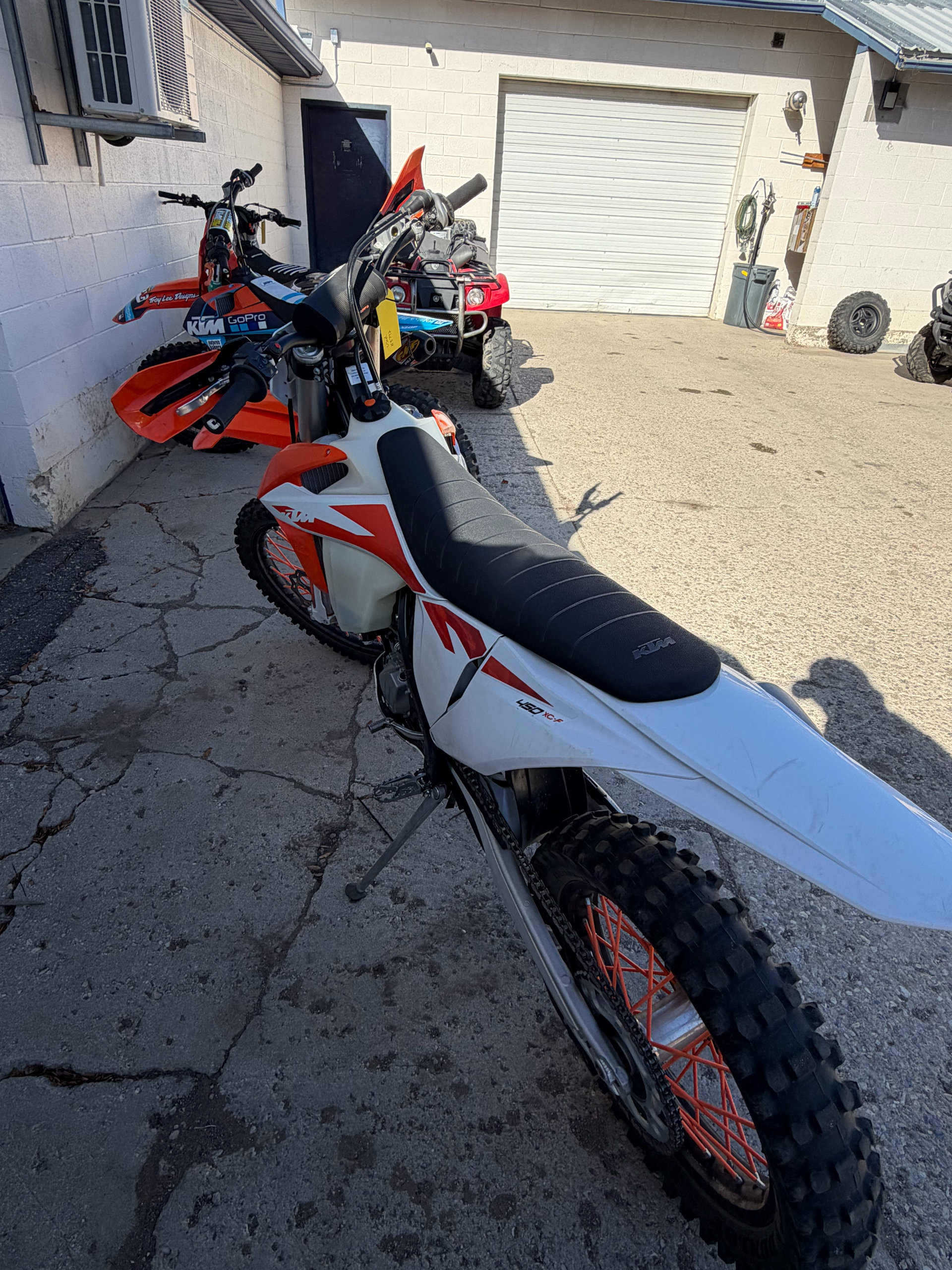

2020 KTM 450 XC-F for Sale

Bodywork & Graphics

• BODYWORK & GRAPHICS: The contributions from KTM factory riders, as well as KTM R&D and Kiska Design, have helped to shape the bodywork and the success of this radical machine. The design that features across all 2020 offroad models, achieves complete harmony between rider and bike, down to the finest detail. The main goal is to provide the perfect contact points for the rider to enjoy maximum freedom of movement and improved handling. The I-beam design for the front and rear fenders are prime examples of the intelligent design that appears in every element of the bodywork, guaranteeing maximum stability at the lowest possible weight.
• DECALS: Simply riding a KTM 450 XC-F attracts the attention of onlookers, but the new inlay graphics definitely make them turn for a second look.

Chassis

• CHASSIS: The KTM 450 XC-F has a lightweight, high-tech steel frame, carried over from the 2019 model. It plays an integral role in the bike’s renowned maneuverability, while also providing accurate rider feedback. Its refined flex characteristics ensure the bike soaks up those big hits while still delivering excellent agility and high-speed stability. The chassis also features additional innovative elements like “no dirt” footpegs and brackets for mounting an optional composite skid plate. For 2020, the suspension features improved damping characteristics. The reworked settings offer a slightly softer, more comfortable feel that, together with the dynamic, performance-oriented chassis, contribute to an intuitive, high-performance ride like no other.
• FRAME: The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on precisely calculated stiffness of the frame. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight aluminum engine head stays (the connection between cylinder head and frame) contribute to more precise cornering and a reduced vibration level. The engineers were able to pull off all that, while making their frame 2.2 pounds lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of aluminum, which tips the scales at less than 2 pounds.
• SWINGARM: The cast aluminum design offers low weight and a perfect flex behavior. The single-component casting process eliminates any inconsistencies and inherent weak points created by welding. It’s better looking too.
• WHEELS: The 450 XC-F is fitted with lightweight, CNC-machined hubs, high-end Giant rims and black spokes with lightweight aluminum nipples providing maximum stability at minimum weight. The latest Dunlop Geomax AT81 tires guarantee perfect traction and outstanding performance.
• FRONT SUSPENSION: The lightweight WP XACT front fork with AER technology, a 48 mm USD air-sprung fork developed by WP in close collaboration with KTM, is a split fork with separate functions for each leg. That means damping functions are on the right side, whereas the air spring is in the left. This left leg features a 2-chamber system with a capsuled air cartridge to prevent loss of air pressure. Should the outer seal start to leak, the internal cartridge pressure will keep the bike in position. The air spring is easy to adjust to any rider weight via a single air valve. No extra special tools are required; the fork air pump is supplied with the bike. The right fork leg integrates a damping cartridge that tailors to all your damping needs. It can be adjusted to the track conditions and the rider’s preferences with a twist of a dial (compression from the top, rebound from the bottom, 30 clicks each). Right off the dealer floor, this fork (with reworked damping characteristics and new piston) is more comfortable and more sensitive than ever. But you can still hammer the hell out of it.
• REAR SUSPENSION: The WP XACT shock absorber has been developed with the entire frame and swingarm architecture in mind, including the linkage system and the WP XACT front forks. It features machined and anodized components and is a valuable, high-end product compared to roughcast reservoirs. A new, confidence inspiring setting with improved damping characteristics perfectly matches the front-end set-up and its WP color scheme lets everyone know you have excellent taste in suspension.
• TRIPLE CLAMP: Top quality, CNC machined triple clamps have been a KTM trademark for years to ensure precise handling. The rubber damped handlebar fixation allows for two positions and an hourmeter is fitted in order to let the rider know it’s time for a service.
• BRAKES: These high-tech Brembo brakes are combined with lightweight Wave brake discs. You couldn’t brake any harder, better, faster or stronger.
• AIRBOX: The air filter box design offers maximum protection of the air filter against soiling, while ensuring maximum airflow. The large Twin Air filter is mounted in a stiff cage, which at the same time holds the system in place. This design is so simple, you could still pop a fresh one in with a face full of mud. Without tools. In seconds.

Engine & Exhaust

• ENGINE & EXHAUST: The 450 XC-F features the same compact 450 cc powerhouse as in the ripper 450 SX-F. KTM’s engineers worked tirelessly to increase the READY TO RACE ability of this machine by including the latest engine management technology and refining the SOHC cylinder head and the latest electronic fuel injection. This means the 450 XC-F pumps out unrivaled horsepower with one simple goal in mind – to win races!
• ENGINE: The 450 XC-F features the same compact 450 cc powerhouse as in the ripper 450 SX-F. KTM’s engineers worked tirelessly to increase the READY TO RACE ability of this machine by including the latest engine management technology and refining the SOHC cylinder head and the latest electronic fuel injection. This means the 450 XC-F pumps out unrivaled horsepower with one simple goal in mind – to win races!
• CYLINDER HEAD: Inside the SOHC cylinder head, an overhead camshaft controls four ultra-lightweight titanium valves via extremely rigid rocker arms, which are DLC-coated on the intake side. A configuration like this allows engine speeds of up to 11,500 RPM; a baffling figure for a large displacement thumper. Lateral brackets made of aluminum allow an efficient fixation of the engine to the frame and contribute to the bike’s featherweight feel.
• CRANKSHAFT: The KTM 450 XC-F’s crankshaft utilizes a short connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. A plain big (bottom) end bearing with two force-fitted bearing shells runs directly on the crank pin. The necessary oil feed for this bearing is ensured by the engine’s pressurized lubrication. This design is a decisive benefit in terms of the crankshaft service interval, which can be lengthened due to the plain bearing. So just pin it, all day long.
• CRANKCASES AND ENGINE COVERS: The design of the die-cast crankcases allows for minimal weight and a very centralized shaft configuration. This makes the engine short and compact, while contributing to an efficient centralization of masses. The engine covers also feature a solid surface structure, which reduces the wear caused by the rider’s boots. This way, your XC-F will keep looking better longer.
• TRANSMISSION: The KTM 450 XC-F uses a lightweight 5-speed transmission with gear ratios that are perfectly matched to the power delivery of its large displacement engine. The 1st and 3rd gears are treated with a special surface coating for better reliability. An advanced ´No Dirt´ gear shift lever design prevents mud and sand from blocking the joint of the lever and guarantees trouble-free shifting. All 4-stroke engines are fitted with a gear position sensor, giving the option of different engine characteristics for each gear.
• ENGINE MANAGEMENT SYSTEM: The state-of-the-art Keihin engine management system with electronic fuel injection features a 44 mm throttle body. Thanks to its unique injector position, the engine’s response is instantaneous. And to make life even easier, separate systems for cold starts and idle adjustment await you. The lightweight control unit features a unique traction and launch control system for lightning-quick response when the gate drops and maximum grip thanks to different maps that sync with the gear you’re in. It’s also possible to unleash an even more powerful mapping via the handlebar map select switch.
• CYLINDER AND PISTON: Inside the short cylinder, with a bore of 95 mm, thumps a new box-type piston made by CP with a reworked shape for improved performance. Its crown geometry is adapted perfectly to the high-compression combustion chamber, where its rigid structure and low weight shine. Thanks to the low oscillating masses, the engine is as snappy as it is strong.
• BALANCER SHAFT: The side-mounted balancer shaft does double duty also driving the water pump. Thanks to its perfect balance and low oscillating masses, engine vibration is kept to a minimum.
• CLUTCH: The KTM 450 XC-F employs the KTM-developed DDS clutch (damped diaphragm steel) with a robust steel basket, extremely heat resistant clutch plates and nitrated steel liners reducing the wear. This clever design employs a diaphragm spring instead of the usual coil springs, making for considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal is traction but durability is as well. Light operation and telepathic amounts of control are standard with this hydraulic Brembo actuated clutch.
• E-STARTER: Like all KTM 4-stroke motorcycles, the KTM 450 XC-F is started at the push of a button - a priceless advantage when you’re on the clock.
• COOLING: KTM’s proven cooling system routes the coolant from the cylinder head through the frame triangle, directly to aluminum radiators. Thanks to flow optimized internal circulation and CFD-calculated ventilation, the system is superbly efficient. In addition, radiator protections improve heat dissipation. Especially in the mud. They are also integrated into the front part of the shrouds to protect the radiators from impact.

Ergonomics & Comfort

• ERGONOMICS & COMFORT: Riding harder for longer is easy when your machine is purpose-built to endure all terrain. It’s a good thing then that the 450 XC-F has been designed with ergonomics built to do exactly that.
• HANDLEBAR: KTM engineers sure know how to handle handlebars. This tapered one, made of high-strength aluminum, is fixed in damped rubber mounts and has two different positions. ODI lock-on grips make grip changes easy and do not require any wire or glue to be secured.
• FOOTPEGS: Sophisticated ´No Dirt´ footpegs prevent clogging of the footpeg pivot, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the EXC models, which are 6 mm higher than the XC versions.
• SEAT: Ergonomically perfect, the seat has a high foam volume, which offers great comfort and durability, while keeping the weight low.

Software & Electronics

• SOFTWARE & ELECTRONICS: State-of-the-art Keihin engine management and electronic fuel injection makes the 450 XC-F as innovative as it is fast. While different engine maps make sure power is delivered in just the right amounts – whatever the terrain.
• BATTERY & WIRING HARNESS: A strong lithium ion battery breathes life into the engine and contributes to low vehicle weight. The lightweight battery and wiring harness are centralized in a compartment above the air filter box, allowing the mechanic to remove the subframe without moving the electronics. A happy mechanic is a good mechanic.
